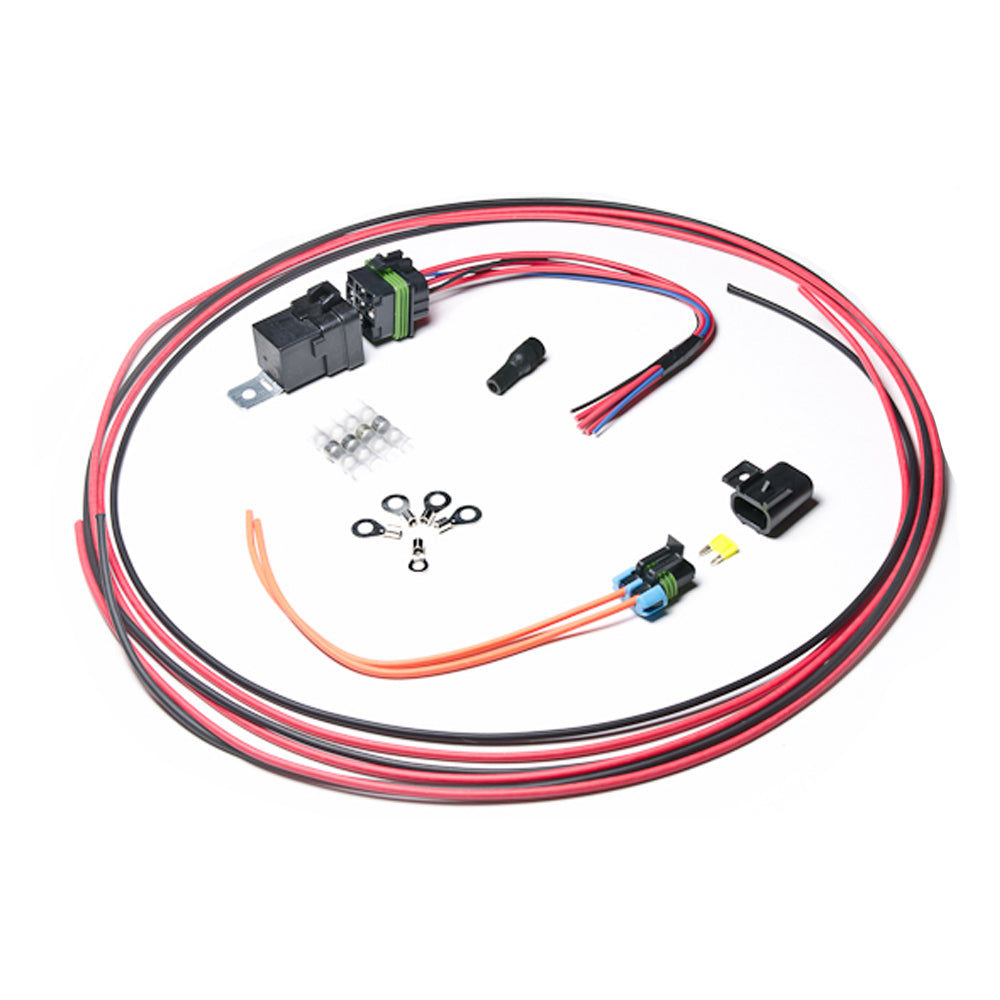

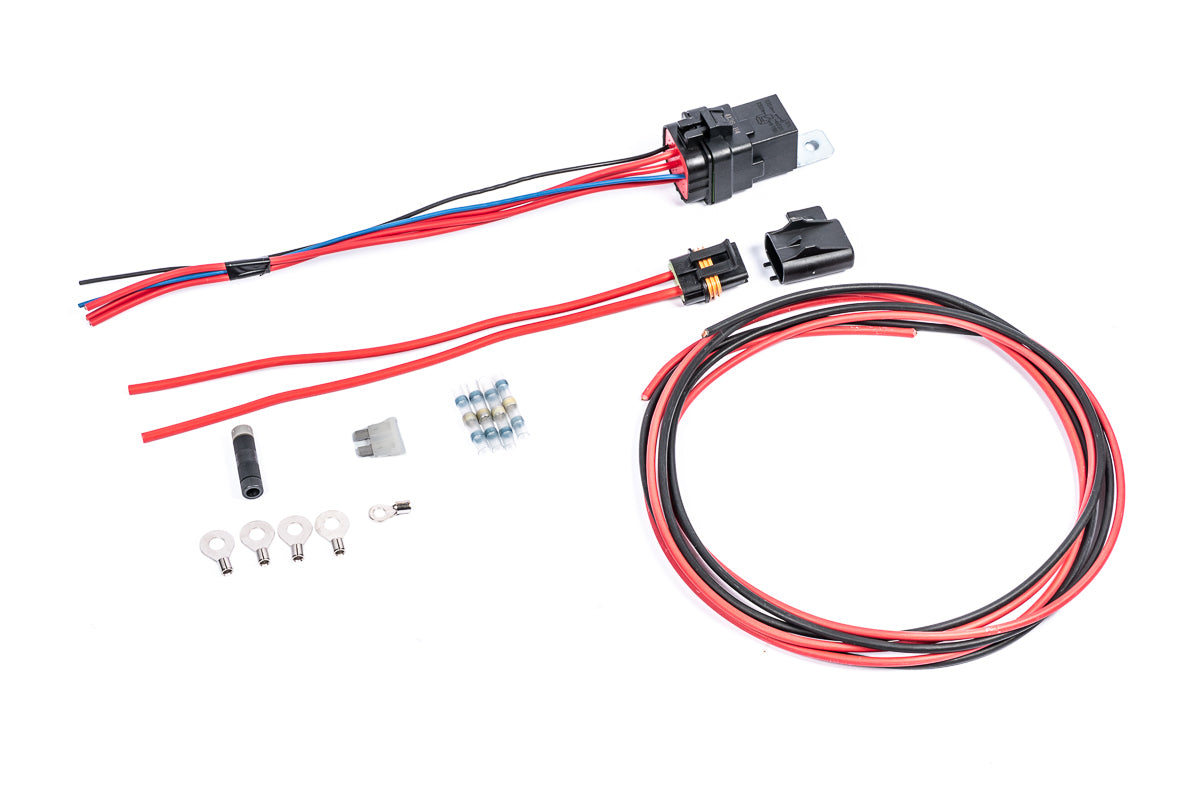

This Do-It-Yourself wiring kit includes the necessary parts to construct a power wiring harness for one fuel pump or other high-current device. It uses the highest quality components to ensure proper operation in all conditions. The Hella® 40A relay and ATC fuse holder are sealed to allow installation in weather exposed areas if necessary. Aircraft grade TXL wiring is resistant to all chemicals and elevated temperatures. Crimpless solder-based butt connectors make reliable wire connections easy and clean.
A 25 Amp ATC fuse is included with the kit.

Radium recommends a dedicated fuse and relay for each fuel pump. Order one wiring kit for EACH fuel pump being installed.

Note: the relay 'trigger' can be connected to a ground or 12V signal as long as the other end of the low current relay coil wire is connected to an opposing source.

• Weatherproof 40A Relay with leads(x1)
• Weatherproof ATC fuse holder with leads(x1)
• Quick-Connect Posi-Tap Connector (x1)
• Crimpless Solder Heat Shrink Butt Splices (x4)
• 6mm Stud Ring Terminals for 10AWG wire (x4)
• 5mm Stud Ring Terminal for 10AWG wire (x1)
• 10AWG Black TXL Wire (10ft / 3m)
• 10AWG Red TXL Wire (10ft / 3m)
• 25A ATC Fuse (x1)
